VCF Operations Orchestrator

VCF Operations Orchestrator Workflow

This tool can help customers set up custom VCF Automation pages using a Branding workflow, rather than REST commands or user interface. Formerly this was called a vRO workflow.

  1. Download com.broadcom.vcf.pve.brandingtheme.package from Downloads section at bottom of page.
  2. Follow steps in Import a Package in VCF Operations Orchestrator (on techdocs) to activate.

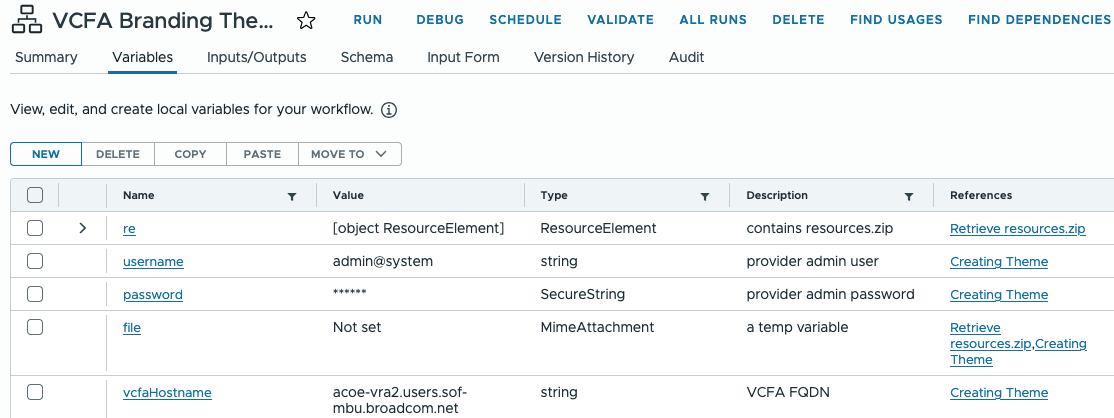

  3. In the VCFA Branding Theme dialog shown below, provide user credentials and hostname.

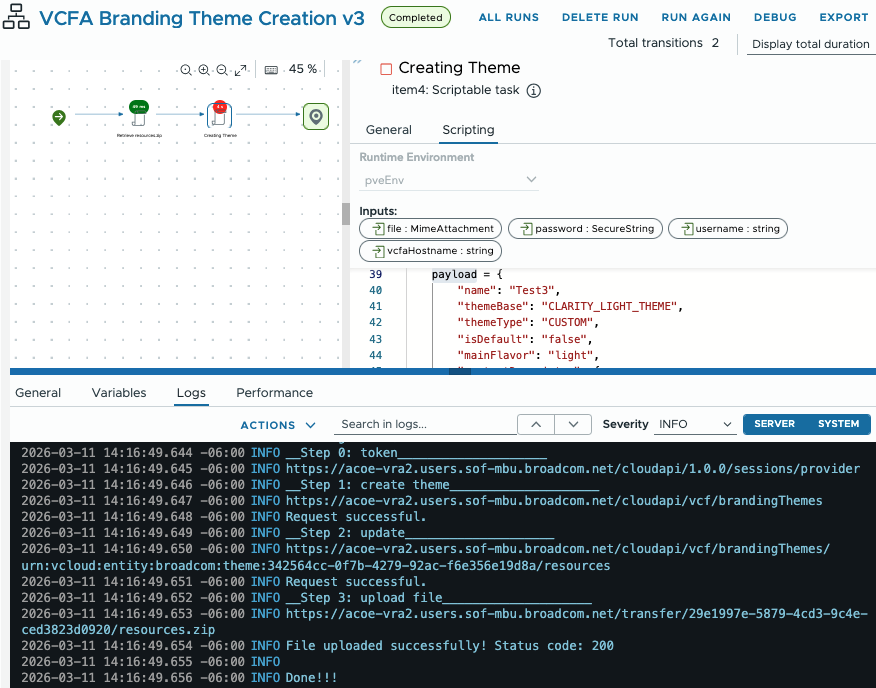

  4. When finished, click Run to create the branding theme. Completed screenshot follows.

The resource Zip file should contain both dark and light themes including background and logo. You can update both payloads in the theme script.
____

Downloads

By downloading, installing or using the software you agree to be bound by the terms of Broadcom's Software Development Kit License Agreement unless there is a different license provided in or specifically referenced by dowloaded file or package. If you disagree with any terms of the agreement then do not use the software.

Name Version Size MD5
com.broadcom.vcf.pve.brandingtheme.package 1.0 1.08 MB d0ea15db59bf155380f14e7942ee1802
